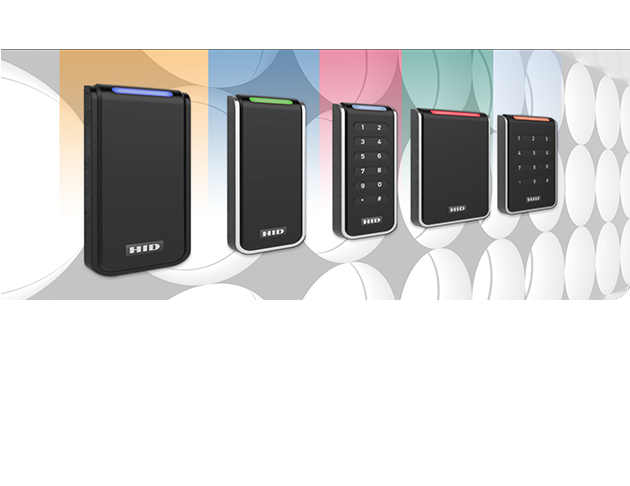

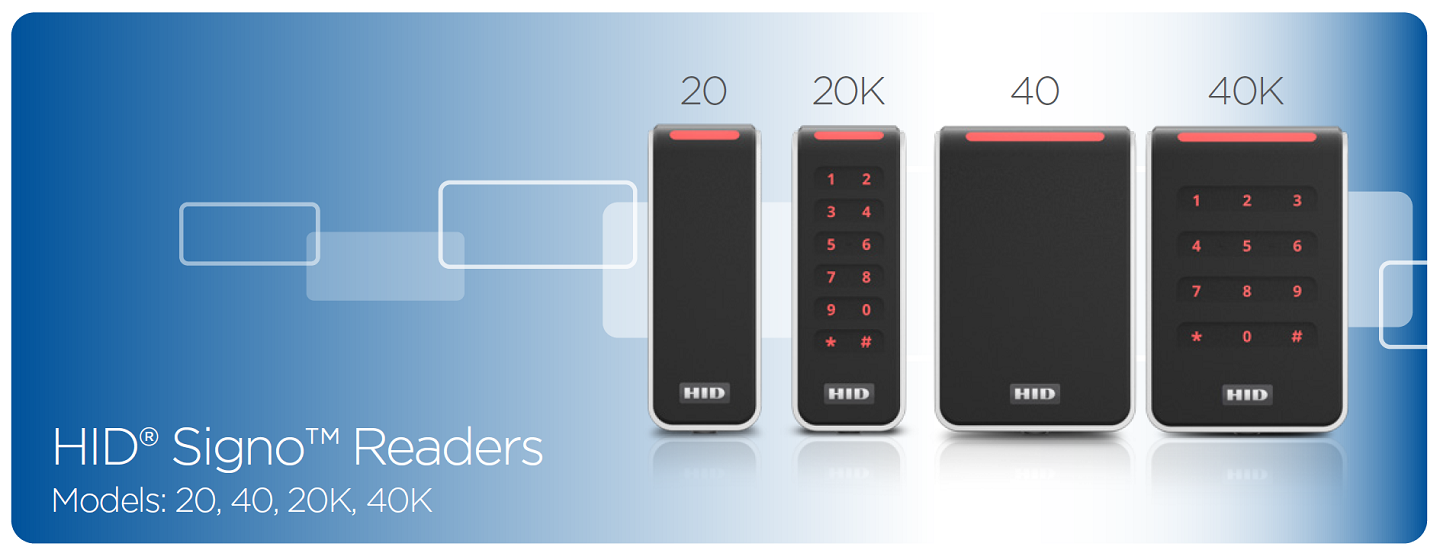

HID Signo™ is the signature line of physical access control readers from HID Global. The versatility, performance and connected capabilities of HID Signo readers set a new industry benchmark for the most highly adaptable, interoperable and secure approach to electronic access control.
Offering an unparalleled breadth of functionality, HID Signo affords security system installers and administrators a simple and effective approach to secure access control for almost any scenario.
With support for the widest array of credential technologies — past, present and future — HID Signo is the perfect choice for those looking to make the transition to a secure authentication technology.
HID Signo readers transcend the traditional approach to security by being designed to be connected and managed remotely without needing to physically touch each device. This functionality empowers access control systems to dynamically respond as new needs, configurations or threats arise.

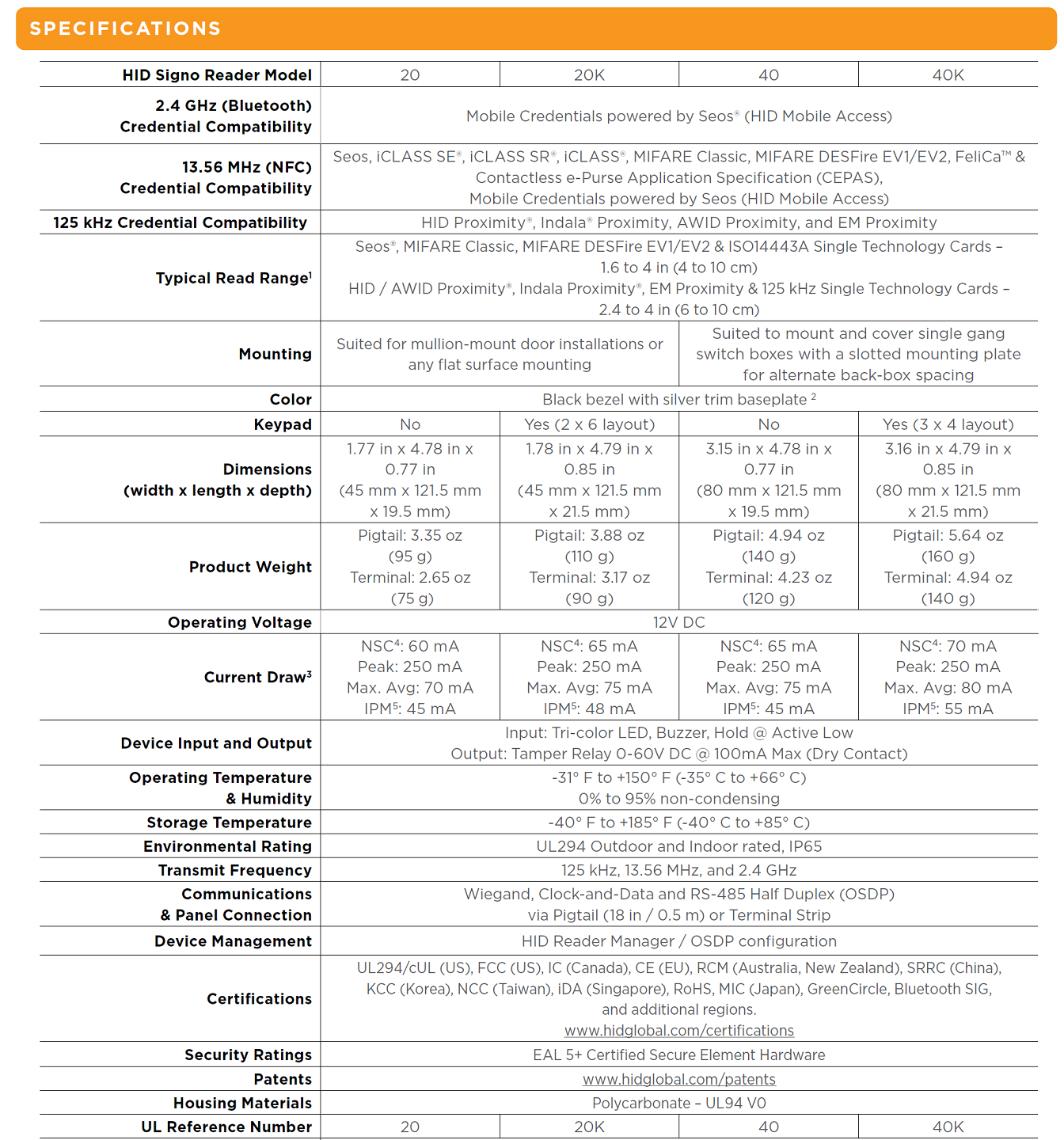

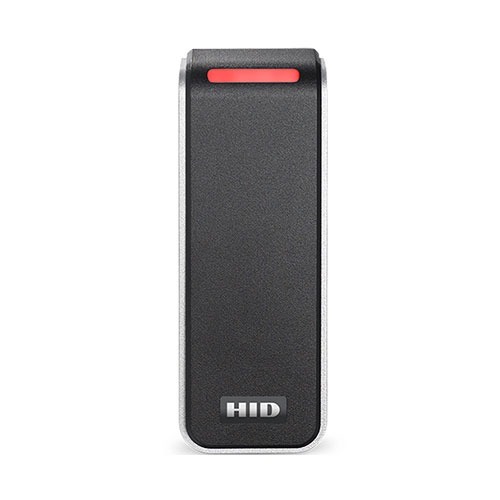

HID Signo 20
Contactless Card Reading Technology:

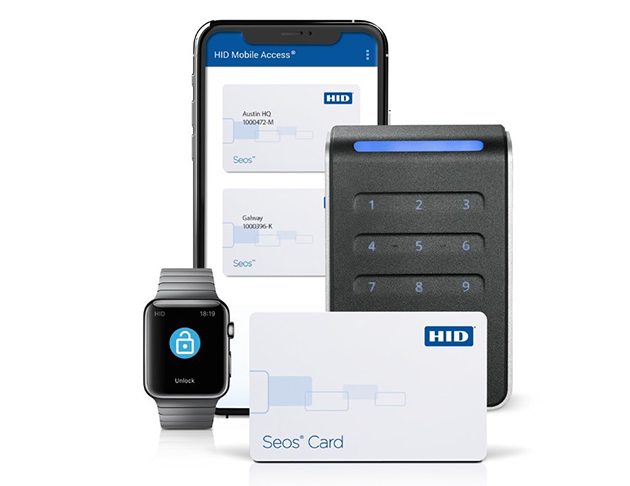

2.4GHz Bluetooth: Mobile Credentials powered by Seos® (HID Mobile Access)13.56MHz (NFC): Seos, iClass SE, iCass SR, MIFARE Classic, DESFire EV1/EV2
125 kHz: HID Proximity, Indala Proximity, AWID and EM Proximity
Typical Read Range:
Seos, iClass, MIFARE: 4~10 cmHID, Indala, AWID Proximity: 6~10 cm
Keypad: No
Dimensions: 45 mm x 121.5 mm x 19.5 cm
Mounting: Suited for mullion-mount door installations or any flat surface mounting
Communications: Standard Wiegand or OSDP
Device Management: HID Reader Manager / OSDP configuration
Operating Voltage: 12V DC
Environmental Rating: UL294 Outdoor and Indoor rated, IP65
Housing Materials: Polycarbonate - UL94 V0
Color: Black bezel with silver trim baseplate

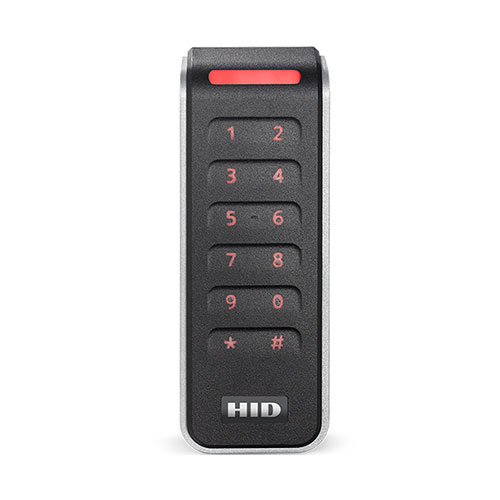

HID Signo 20K
Contactless Card Reading Technology:
2.4GHz Bluetooth: Mobile Credentials powered by Seos® (HID Mobile Access)13.56MHz (NFC): Seos, iClass SE, iCass SR, MIFARE Classic, DESFire EV1/EV2
125 kHz: HID Proximity, Indala Proximity, AWID and EM Proximity
Typical Read Range:
Seos, iClass, MIFARE: 4~10 cmHID, Indala, AWID Proximity: 6~10 cm
Keypad: 2 x 6 layout
Dimensions: 45 mm x 121.5 mm x 21.5 cm
Mounting: Suited for mullion-mount door installations or any flat surface mounting
Communications: Standard Wiegand or OSDP
Device Management: HID Reader Manager / OSDP configuration
Operating Voltage: 12V DC
Environmental Rating: UL294 Outdoor and Indoor rated, IP65
Housing Materials: Polycarbonate - UL94 V0
Color: Black bezel with silver trim baseplate

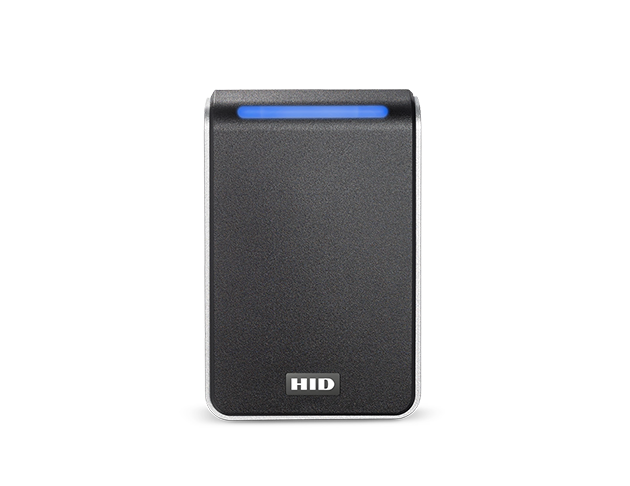

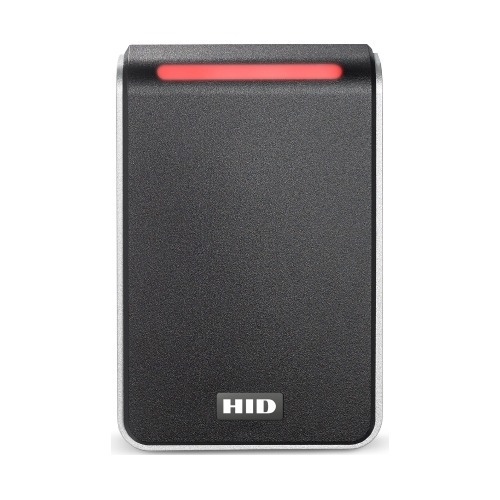

HID Signo 40
Contactless Card Reading Technology:
2.4GHz Bluetooth: Mobile Credentials powered by Seos® (HID Mobile Access)13.56MHz (NFC): Seos, iClass SE, iCass SR, MIFARE Classic, DESFire EV1/EV2
125 kHz: HID Proximity, Indala Proximity, AWID and EM Proximity
Typical Read Range:
Seos, iClass, MIFARE: 4~10 cmHID, Indala, AWID Proximity: 6~10 cm
Keypad: No
Dimensions: 80 mm x 121.5 mm x 19.5 cm
Mounting: Suited to mount and cover single gang switch boxes with a slotted mounting plate for alternate back-box spacing
Communications: Standard Wiegand or OSDP
Device Management: HID Reader Manager / OSDP configuration
Operating Voltage: 12V DC
Environmental Rating: UL294 Outdoor and Indoor rated, IP65
Housing Materials: Polycarbonate - UL94 V0
Color: Black bezel with silver trim baseplate

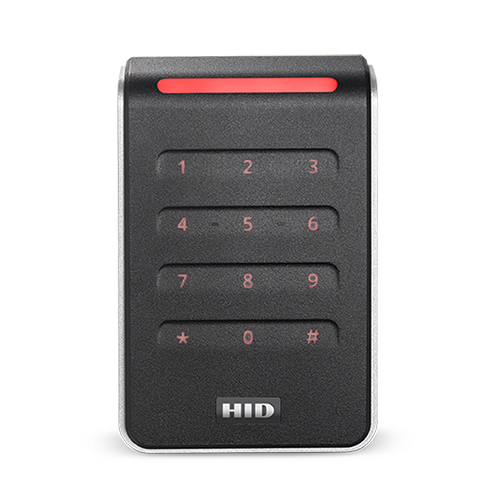

HID Signo 40K
Contactless Card Reading Technology:
2.4GHz Bluetooth: Mobile Credentials powered by Seos® (HID Mobile Access)13.56MHz (NFC): Seos, iClass SE, iCass SR, MIFARE Classic, DESFire EV1/EV2
125 kHz: HID Proximity, Indala Proximity, AWID and EM Proximity
Typical Read Range:
Seos, iClass, MIFARE: 4~10 cmHID, Indala, AWID Proximity: 6~10 cm
Keypad: 3 x 4 layout
Dimensions: 80 mm x 121.5 mm x 21.5 cm
Mounting: Suited to mount and cover single gang switch boxes with a slotted mounting plate for alternate back-box spacing
Communications: Standard Wiegand or OSDP
Device Management: HID Reader Manager / OSDP configuration
Operating Voltage: 12V DC
Environmental Rating: UL294 Outdoor and Indoor rated, IP65
Housing Materials: Polycarbonate - UL94 V0
Color: Black bezel with silver trim baseplate
